EchoPanel 12mm 2800 x 1200mm Print plain colours
Dimensions:
Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm),
Thickness: 12mm (+/- 7%)
Composition:100% PET (60% recycled)
Weight approx 8kg per panel
Sound Absorbtion :AS ISO 354 - 2006
NRC value: 0.45 (No air gap)
NRC value: 0.60 (20mm Air gap)
NRC value: 0.75 (50mm Air gap)
Lightfastness: ISO 105-B02 - 1994 Rating: 6-7
AS 2001.4.21-1970 Rating: 6-7
Fire test: AS 1530.3
ISO 9705: Group 1
GB 8624B1
BS EN 13501.1: Classification B-S1, D0
Sustainability:Greentag Certified: Green rate Level A
Health Declaration: Platinum, Environmental Product Declaration
Colours #1 Range: 442 Grey, 500 Off White, 542 Charcoal, 550 Black
Note: Others to install
Installation in Ballarat: POA
Dimensions:2800mm X 1200mm
Thickness:12mm
Composition:100% PET (60% recycled)
Weight approx 8kg per panel
Sound Absorbtion :AS ISO 354 - 2006
NRC value: 0.45 (No air gap)
NRC value: 0.60 (20mm Air gap)
NRC alue: 0.75 (50mm Air gap)
Lightfastness: ISO 105-B02 - 1994 Rating: 6-7
AS 2001.4.21-1970 Rating: 6-7
Fire test: AS 1530.3
ISO 9705: Group 1
GB 8624B1
BS EN 13501.1: Classification B-S1, D0
Sustainability:Greentag Certified: Green rate Level A
Health Declaration: Platinum, Environmental Product Declaration

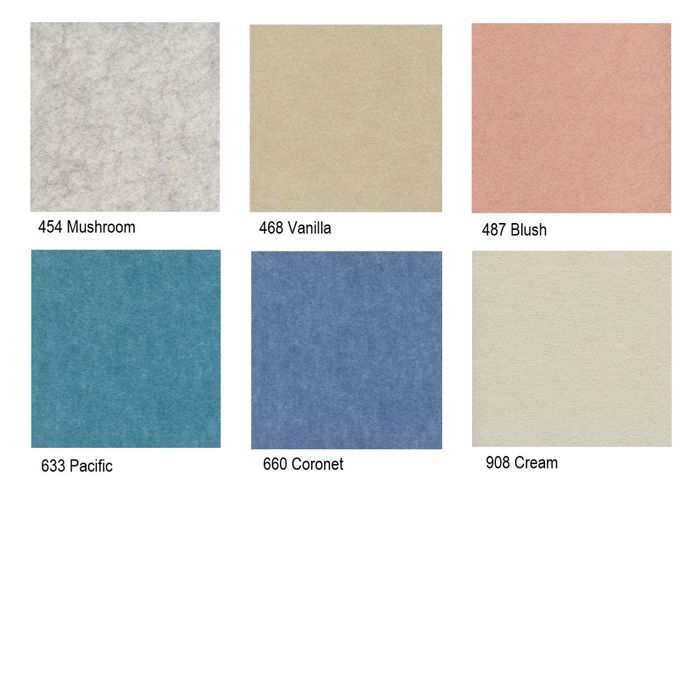

Colour #2 Range: 101, 106, 274, 338, 349, 384, 402 Pebble, 444 Smoke,454, 468 Vanilla, 487 Blush, 633, 660, 908 Beige
Note: Others to install
Installtion in Ballarat: POA
Dimensions:2800mm X 1200mm
Thickness:12mm
Composition:100% PET (60% recycled)
Weight approx 8kg per panel
Sound Absorbtion :AS ISO 354 - 2006
NRC value: 0.45 (No air gap)
NRC value: 0.60 (20mm Air gap)
NRC alue: 0.75 (50mm Air gap)
Lightfastness: ISO 105-B02 - 1994 Rating: 6-7
AS 2001.4.21-1970 Rating: 6-7
Fire test: AS 1530.3
ISO 9705: Group 1
GB 8624B1
BS EN 13501.1: Classification B-S1, D0
Sustainability:Greentag Certified: Green rate Level A
Health Declaration: Platinum, Environmental Product Declaration
Colour #3 Range: 124 Ochre, 295 Mandarin, 381 L/Splice,484 , 551 Duck Egg, 579 Pistachio, 580 Sage, 721
Note: Others to install
Installtion in Ballarat: POA
Dimensions:2800mm X 1200mm
Thickness:12mm
Composition:100% PET (60% recycled)
Weight approx 8kg per panel
Sound Absorbtion :AS ISO 354 - 2006
NRC value: 0.45 (No air gap)
NRC value: 0.60 (20mm Air gap)
NRC alue: 0.75 (50mm Air gap)
Lightfastness: ISO 105-B02 - 1994 Rating: 6-7
AS 2001.4.21-1970 Rating: 6-7
Fire test: AS 1530.3
ISO 9705: Group 1
GB 8624B1
BS EN 13501.1: Classification B-S1, D0
Sustainability:Greentag Certified: Green rate Level A
Health Declaration: Platinum, Environmental Product Declaration

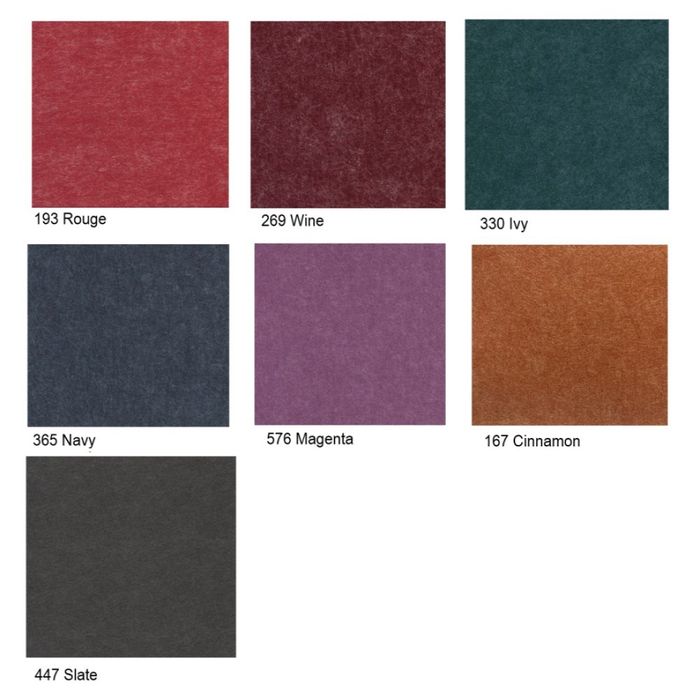

Colour #4 Range: 167 Cinnamon, 193 Rouge, 269 Wine, 330 Ivy, 365 Navy, 447 Slate
Note: Others to install
Installation in Ballarat: POA
