Ergotron LX Monitor Arm Dual Direct Arm Black Boxed
Description

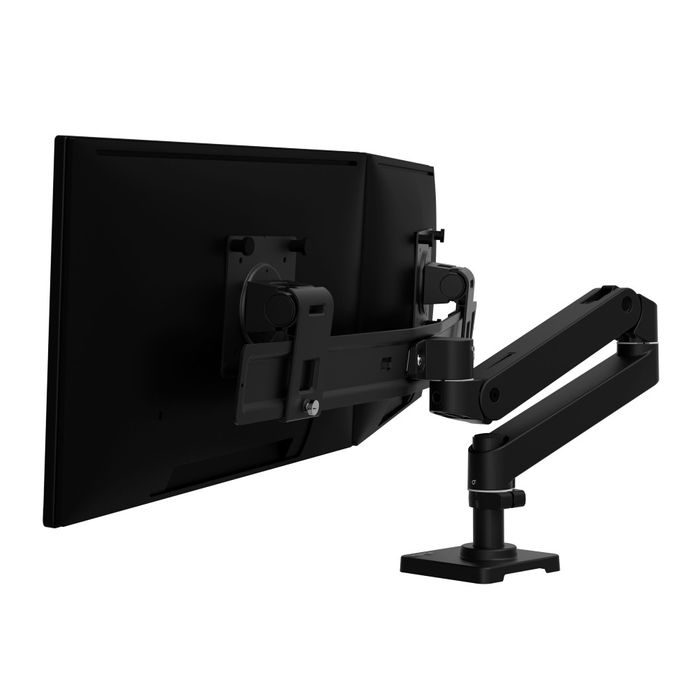

LX Pro Desk Dual Direct Arm WCB, Two Monitor Mount
Includes arm, extension, dual bow, two monitor pivots, 2-piece desk clamp, standard base, 5" pole, pole collar, attachment hardware
A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Aluminum construction offers greater durability and enhanced aesthetics
Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when displays are 2.6" (6.6 cm) thick. This accommodates most displays with screens = 27" diagonal
* Weight Capacity: Maximum individual monitor weight = 9.4 lbs (4.25 kg). Total weight capacity = 18.8 lbs (8.5 kg). Display depth greater than 3" (7.5 cm) may affect weight capacity
Tilt Range: 13° backward, 17° forward. Each monitor tilts individually
§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/bow (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop
Maximum Extension: = 25" (64 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick
Warranty: Ten years
Finish: Black
Boxed
note: monitors not included
